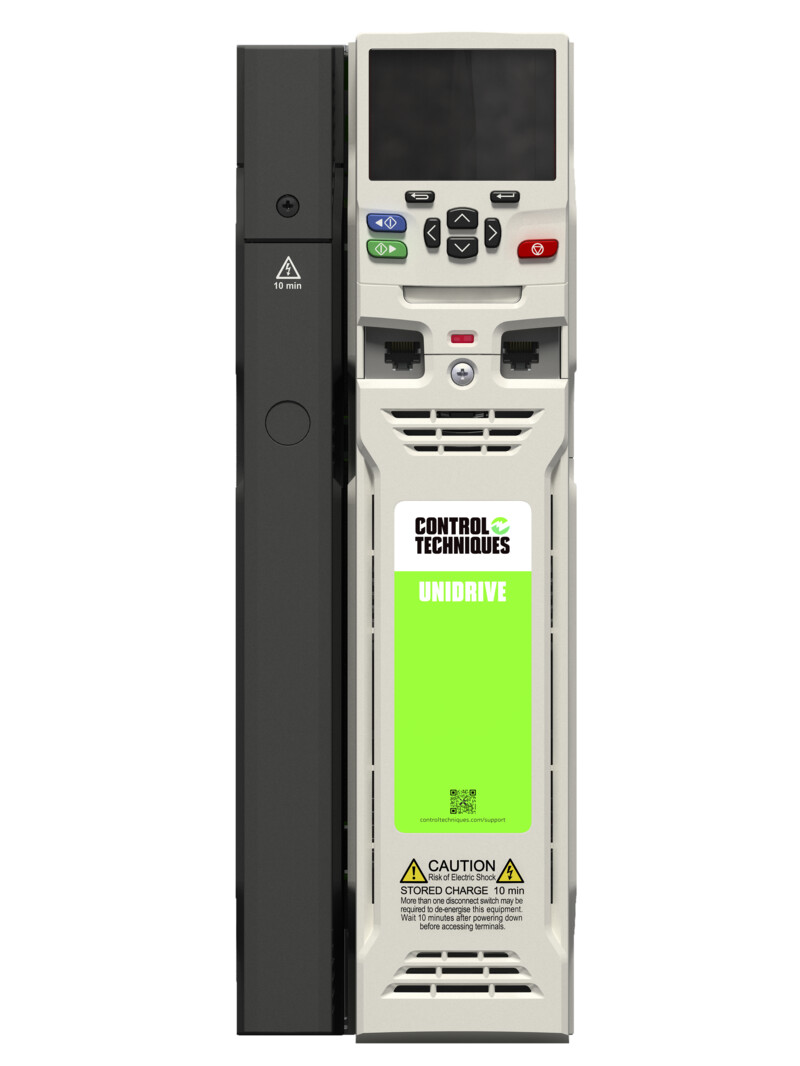

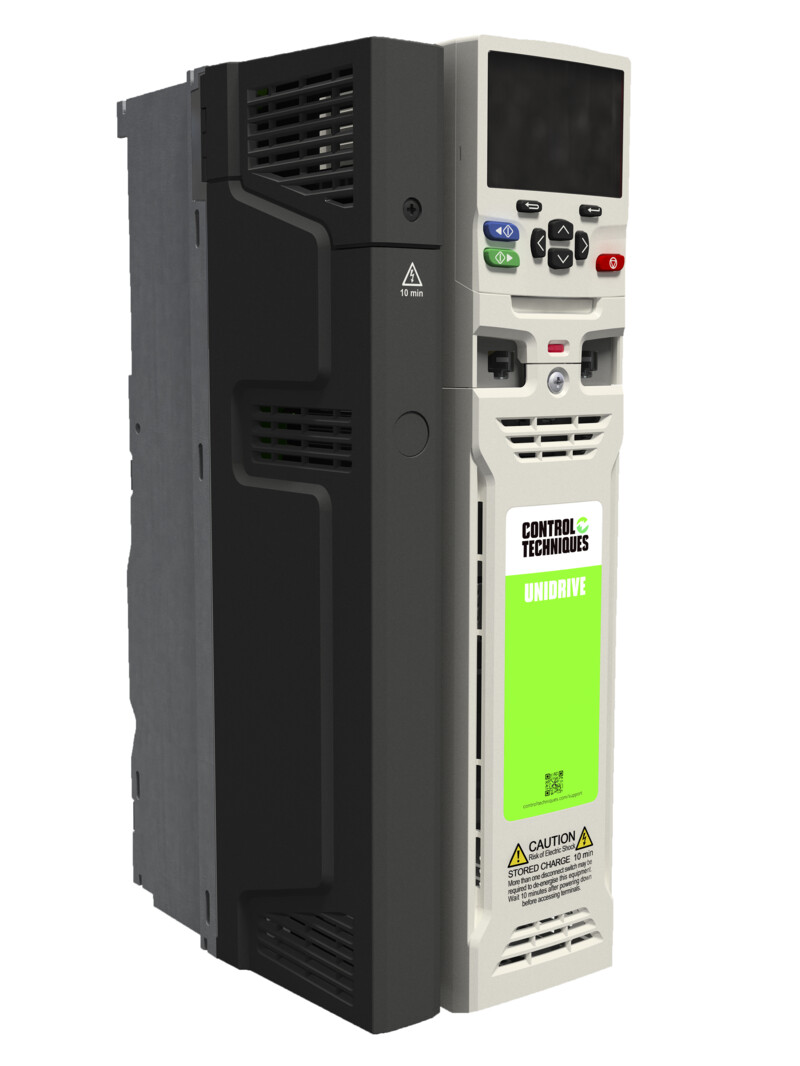

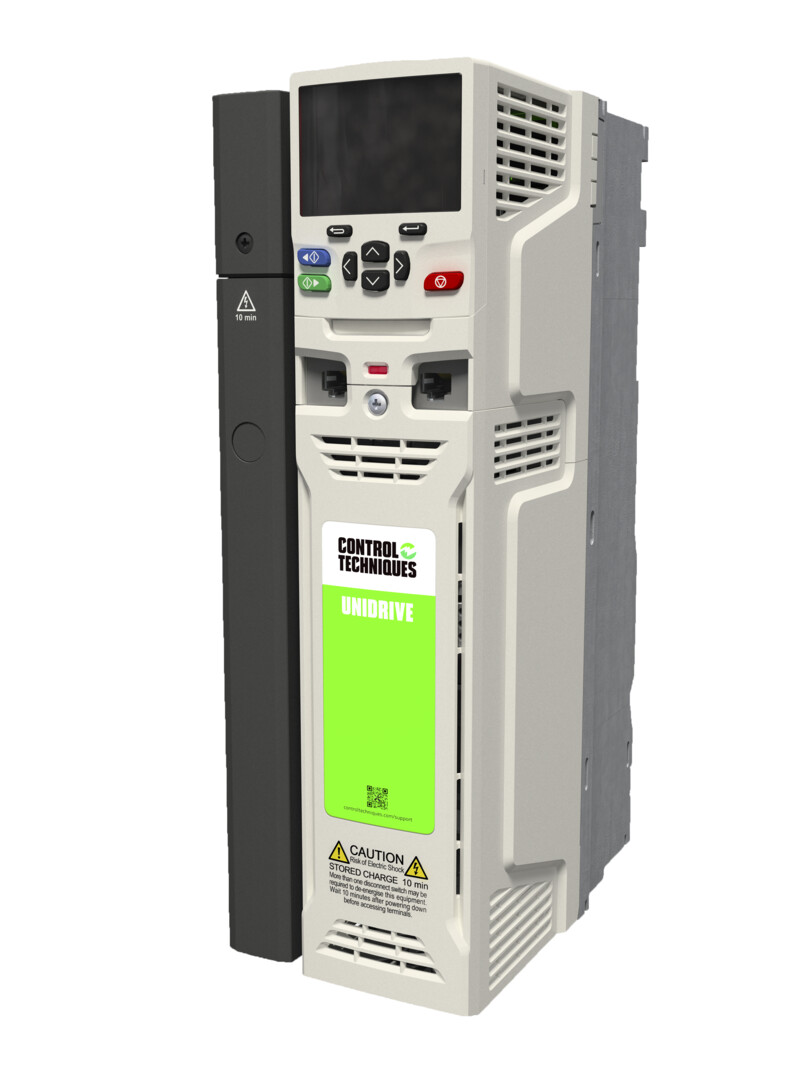

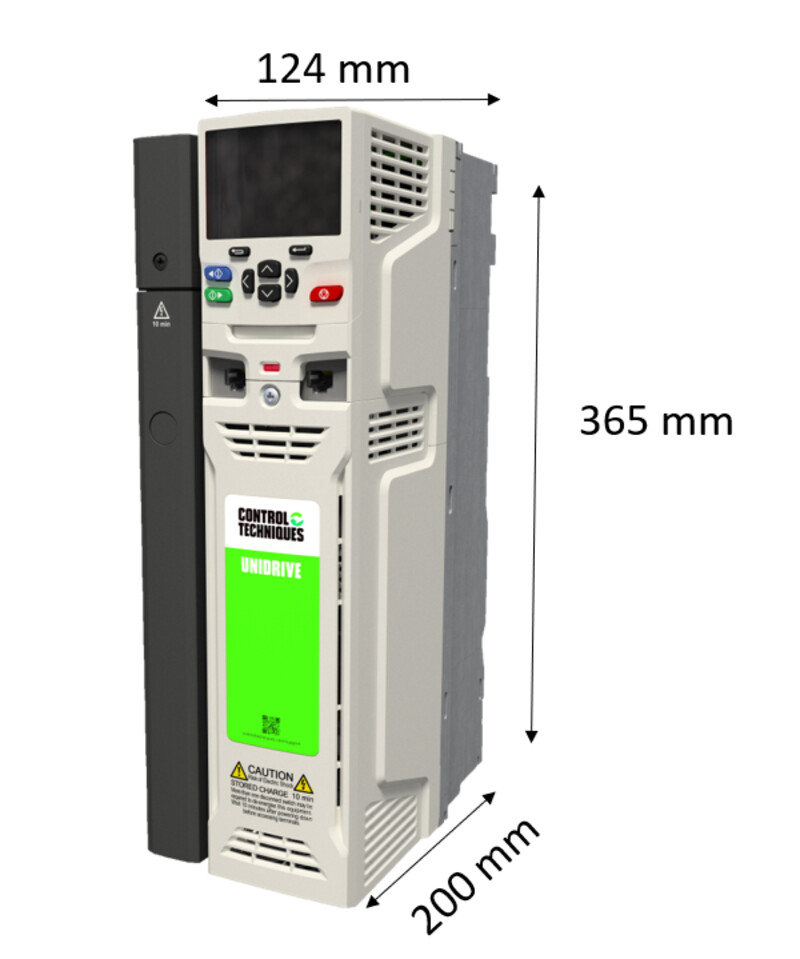

Unidrive M700 drive 380 - 480V - 7.5 / 11 kW - 17.2 / 24.0 A - Type (frame 4)
M700-04400172A10100AB100
Unidrive M700 regelaar 380 - 480V - 7,5 / 11 kW - 17,2 / 24,0 A - Type (frame 4)
Replacement option for: Unidrive SP
Features:
· Comprehensive system controller with Ethernet Multi-protocol onboard
· Suitable for high dynamic and precise applications
· Drives induction motors in open or closed loop, servo or linear motors, or permanent magnet motors in open or closed loop
· Supports various types of encoders and resolvers via the encoder port
· Configuration as Active Front End possible
Advanced Motion Controller:
· Real-time tasks
· Cycle time of 250 µs
· Motion profile generator
· Electronic gearbox
· Interpolated CAM
· Homing functions
· High-speed position freeze
Other features:
· Various fieldbuses available
· Onboard PLC (CoDeSys), expandable with application modules
· 3 SI option slots
· Multilingual LCD text display for quick programming and diagnostics
· STO (Safe Torque Off) input
· Internal oscilloscope for diagnostics and tuning
· Options for saving and copying parameters and/or PLC programs: SD card, SmartCard
· 24 V backup onboard
Feedback support:
· Quadrature incremental encoder with or without marker pulse
· Frequency Direction incremental encoder with or without marker pulse
· Forward Reverse incremental encoder with or without marker pulse
· Quadrature incremental with U-V-W commutation signals
· Frequency Direction incremental with U-V-W commutation signals
· Forward Reverse with U-V-W commutation signals
· SinCos incremental encoder with or without marker pulse
· SinCos with Hiperface communication protocol for absolute position
· EnDat communication protocol
· SinCos with absolute EnDat communication protocol
· Absolute SSI with gray or binary code
· SinCos with SSI communication protocol
· SinCos with U-V-W commutation signals
· BiSS communication protocol
· Resolver
· SinCos incremental encoder with or without marker pulse with an absolute SinCos channel
· Solely U-V-W commutation signals for open loop permanent magnet motors
· SinCos with BiSS communication protocol
Multi-Protocol Ethernet:
· TCP/IP
· Modbus TCP/IP
· EtherNet/IP
· Profinet Real Time (Class 1 and conformance class A)
· RTMoE (Real Time Motion over Ethernet)
Replacement option for: Unidrive SP
Features:
· Comprehensive system controller with Ethernet Multi-protocol onboard
· Suitable for high dynamic and precise applications
· Drives induction motors in open or closed loop, servo or linear motors, or permanent magnet motors in open or closed loop
· Supports various types of encoders and resolvers via the encoder port
· Configuration as Active Front End possible
Advanced Motion Controller:
· Real-time tasks
· Cycle time of 250 µs
· Motion profile generator
· Electronic gearbox
· Interpolated CAM
· Homing functions
· High-speed position freeze
Other features:
· Various fieldbuses available
· Onboard PLC (CoDeSys), expandable with application modules
· 3 SI option slots
· Multilingual LCD text display for quick programming and diagnostics
· STO (Safe Torque Off) input
· Internal oscilloscope for diagnostics and tuning
· Options for saving and copying parameters and/or PLC programs: SD card, SmartCard
· 24 V backup onboard
Feedback support:
· Quadrature incremental encoder with or without marker pulse
· Frequency Direction incremental encoder with or without marker pulse
· Forward Reverse incremental encoder with or without marker pulse
· Quadrature incremental with U-V-W commutation signals
· Frequency Direction incremental with U-V-W commutation signals
· Forward Reverse with U-V-W commutation signals
· SinCos incremental encoder with or without marker pulse
· SinCos with Hiperface communication protocol for absolute position
· EnDat communication protocol
· SinCos with absolute EnDat communication protocol
· Absolute SSI with gray or binary code
· SinCos with SSI communication protocol
· SinCos with U-V-W commutation signals
· BiSS communication protocol
· Resolver
· SinCos incremental encoder with or without marker pulse with an absolute SinCos channel
· Solely U-V-W commutation signals for open loop permanent magnet motors
· SinCos with BiSS communication protocol
Multi-Protocol Ethernet:
· TCP/IP
· Modbus TCP/IP
· EtherNet/IP
· Profinet Real Time (Class 1 and conformance class A)
· RTMoE (Real Time Motion over Ethernet)
