Properties
- C200-04400135A10100AB100
- NIDEC
- 13.5
- 5.5
- Frame 4
- 3X400V
- C200
Links & downloads

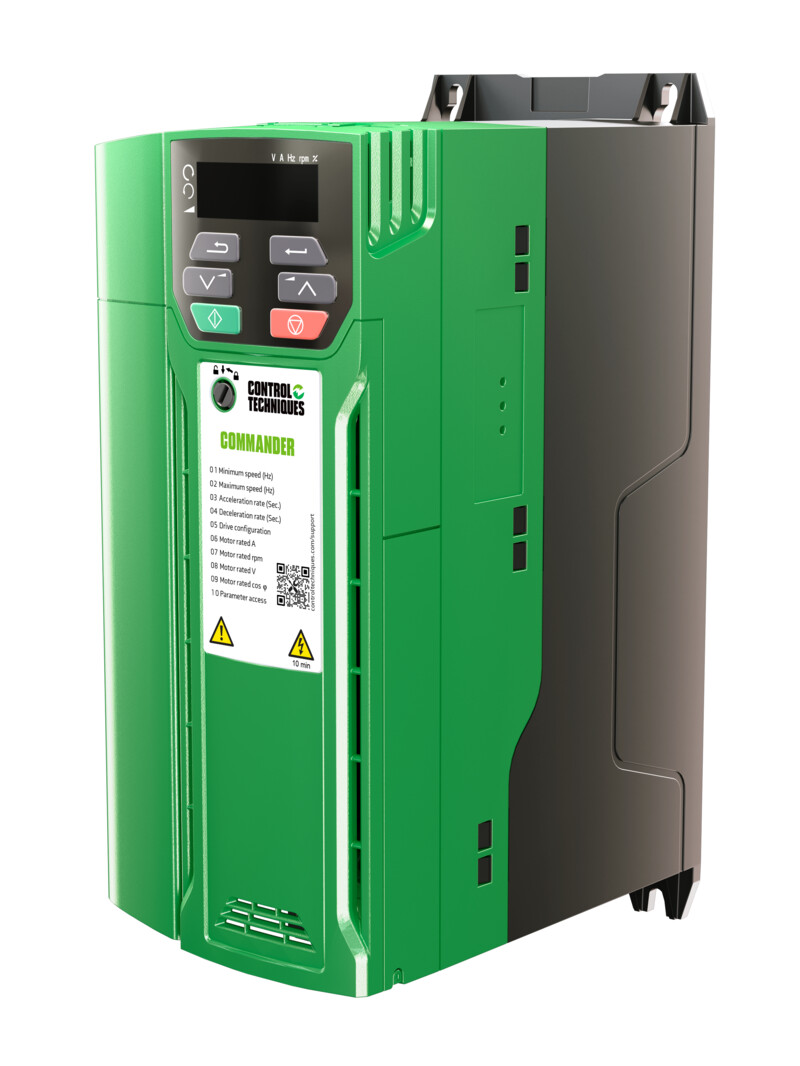

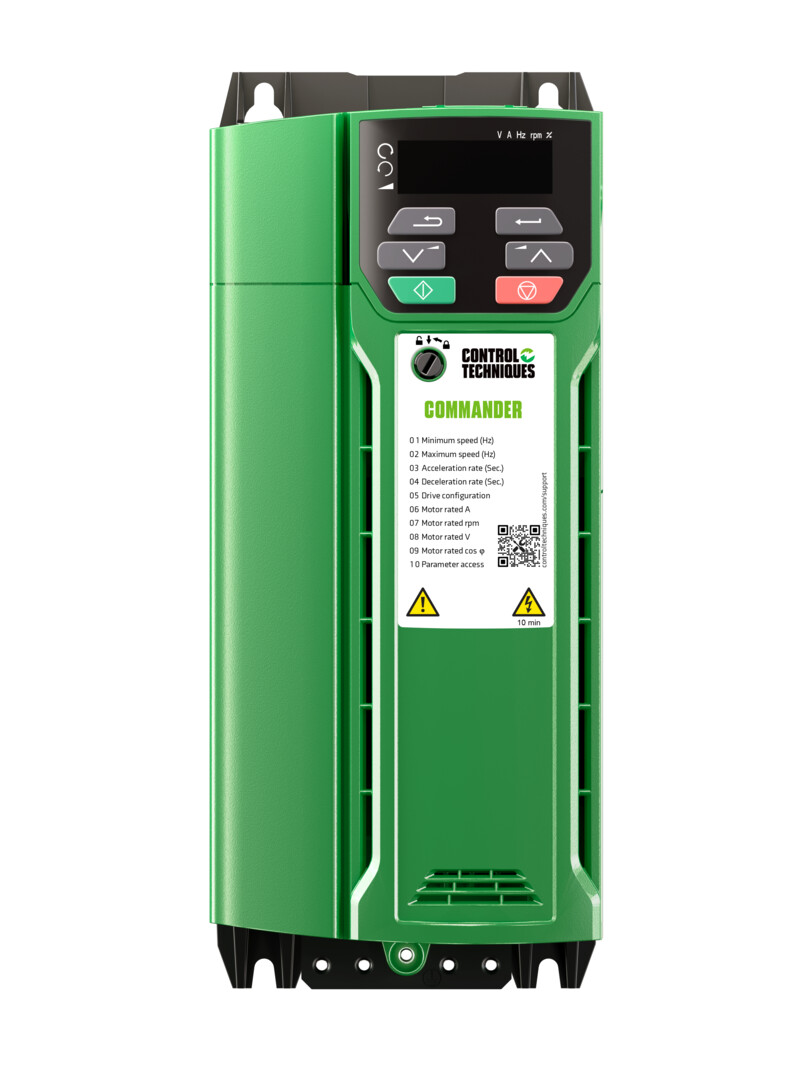

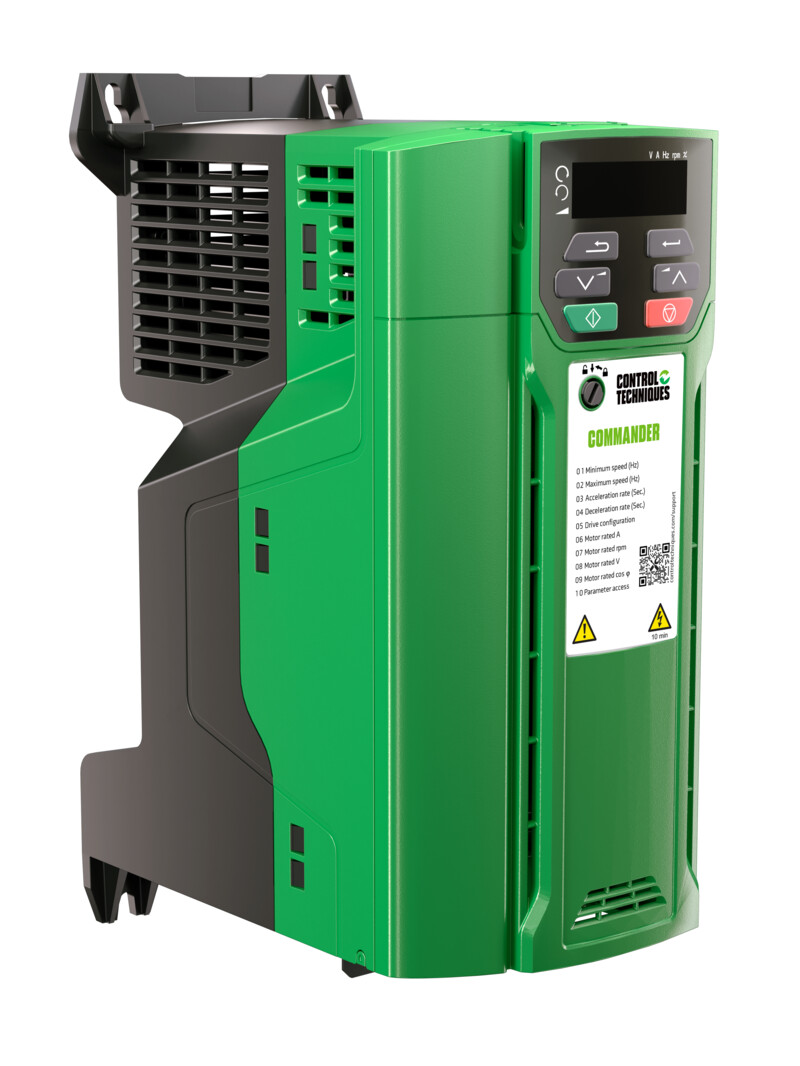

Commander C200 controller 400V - 5,5 kW - 13,5 A - (Fr. 4) + Filter
C200-04400135A10100AB100
Commander C200 controller 400V - 5,5 kW - 13,5 A - (frame 4) + EMC-Filter
Equipped with:
- LED display
- EMC filter
- Brake chopper
- Freely programmable I/O
- Internal PLC (CODESYS)
Product Description
Latest generation 'Commander' frequency converters, successor to the Commander SK, Unidrive M100, Unidrive M101, Unidrive M200, or Unidrive M201.
The Commander C200 provides maximum machine performance in open loop vector or sensorless motor control (RFC-A).
Features:
- Flexible integration through many available fieldbuses
- Logic blocks, PID, Motor potentiometer
- Thermistor input
- PLC onboard (CoDeSys)
- SD card option for storing and copying parameters and/or PLC programs
- 24 V backup option
- RS485 / Modbus RTU option
Equipped with:
- LED display
- EMC filter
- Brake chopper
- Freely programmable I/O
- Internal PLC (CODESYS)
Product Description
Latest generation 'Commander' frequency converters, successor to the Commander SK, Unidrive M100, Unidrive M101, Unidrive M200, or Unidrive M201.
The Commander C200 provides maximum machine performance in open loop vector or sensorless motor control (RFC-A).
Features:
- Flexible integration through many available fieldbuses
- Logic blocks, PID, Motor potentiometer
- Thermistor input
- PLC onboard (CoDeSys)
- SD card option for storing and copying parameters and/or PLC programs
- 24 V backup option
- RS485 / Modbus RTU option
