Properties
- 0104.63G4TA235E3
- TECHTOP
- 5412463001701
- 0.18
- 63
- B35
- 4P / 1500rpm
- 230/400V
- TA
- IE3
- Aluminum
Links & downloads

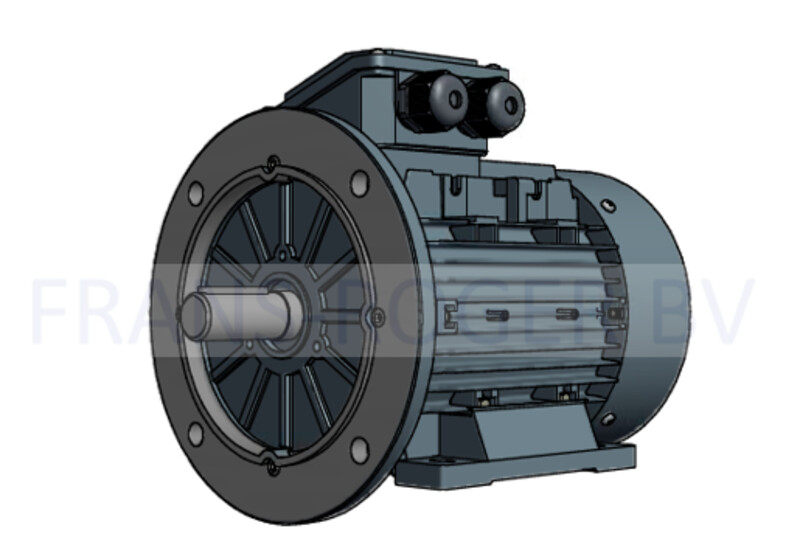

TECHTOP 63 G electric motor - 0.18kW, 4 poles / 1500rpm, B35
0104.63G4TA235E3
Discover the versatility of our T3A electric motor, designed for maximum adaptability. With an aluminum housing and a terminal box that can be positioned according to your needs, this motor offers optimal flexibility for installations where space is limited.
With a power of 0.18 kW and a speed of 1500 rpm, the T3A delivers impressive performance for various applications. Standard equipped with an IP55 rating and featuring a PTC (Positive Temperature Coefficient) for additional protection and safety, this motor provides reliability in different environments. Thanks to the adjustable position of the terminal box and its aluminum design, integration into various systems is straightforward.
Discover the features of our TECHTOP 63G electric motor:
·Construction size: 63G
·Motor Type: TA
·Power: 0.18kW
·Number of poles/Speed: 4 poles / 1500rpm
·Voltage: 230/400V
·Mounting configuration: B35
·Brand: TECHTOP
·Frame type: Aluminum
·IE class: IE3
Trust in the quality and reliability of TECHTOP for all your electric motor needs.
With a power of 0.18 kW and a speed of 1500 rpm, the T3A delivers impressive performance for various applications. Standard equipped with an IP55 rating and featuring a PTC (Positive Temperature Coefficient) for additional protection and safety, this motor provides reliability in different environments. Thanks to the adjustable position of the terminal box and its aluminum design, integration into various systems is straightforward.
Discover the features of our TECHTOP 63G electric motor:
·Construction size: 63G
·Motor Type: TA
·Power: 0.18kW
·Number of poles/Speed: 4 poles / 1500rpm
·Voltage: 230/400V
·Mounting configuration: B35
·Brand: TECHTOP
·Frame type: Aluminum
·IE class: IE3
Trust in the quality and reliability of TECHTOP for all your electric motor needs.
