Properties
- 0104.180L4OMM335E3
- OMEC
- 5412463002050
- 22
- 180
- B35
- 4P / 1500rpm
- 400/690V
- OMT1MM
- IE3
- Cast iron
Links & downloads

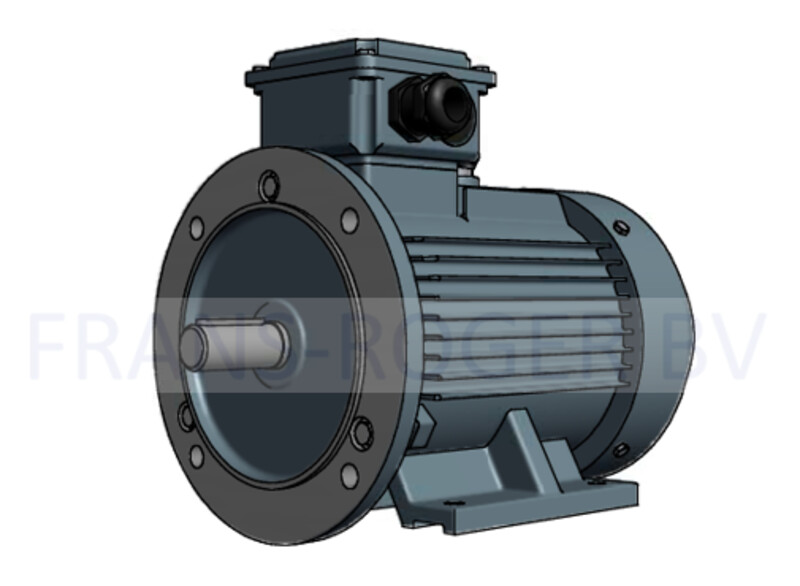

OMEC 180 L electric motor - 22kW, 4 poles / 1500rpm, B35
0104.180L4OMM335E3
Discover the versatility of our OMEC 180L electric motor, especially with the multi-mount variant OMT1MM.
With this innovative version, you can rotate the stator, allowing the terminal box to be placed in the ideal location, even in tight spaces. This adaptability makes the motor perfectly suited for situations where space is a limiting factor.
With a power of 22 kW and a speed of 1500 rpm, this motor delivers powerful and consistent performance for various applications. Constructed with high-quality materials, including a robust cast iron frame, the OMT1MM offers durability and reliability for long-term use.
Standard equipped with an IP55 rating and featuring an integrated PTC (Positive Temperature Coefficient) for additional protection and safety, this motor ensures optimal performance in different conditions. With a B35 mounting configuration and a voltage of 400/690V, this motor easily integrates into various systems.The IE3 efficiency class guarantees not only powerful performance but also energy-efficient operation, allowing you to save both on performance and costs.
Discover the features of our OMEC 180L electric motor:
·Construction size: 180L
·Motor Type: OMT1MM
·Power: 22kW
·Number of poles/Speed: 4 poles / 1500rpm
·Voltage: 400/690V
·Mounting configuration: B35
·Brand: OMEC
·Frame type: Cast iron
·IE class: IE3
Trust in the quality and reliability of OMEC for all your electric motor needs.
With this innovative version, you can rotate the stator, allowing the terminal box to be placed in the ideal location, even in tight spaces. This adaptability makes the motor perfectly suited for situations where space is a limiting factor.
With a power of 22 kW and a speed of 1500 rpm, this motor delivers powerful and consistent performance for various applications. Constructed with high-quality materials, including a robust cast iron frame, the OMT1MM offers durability and reliability for long-term use.
Standard equipped with an IP55 rating and featuring an integrated PTC (Positive Temperature Coefficient) for additional protection and safety, this motor ensures optimal performance in different conditions. With a B35 mounting configuration and a voltage of 400/690V, this motor easily integrates into various systems.The IE3 efficiency class guarantees not only powerful performance but also energy-efficient operation, allowing you to save both on performance and costs.
Discover the features of our OMEC 180L electric motor:
·Construction size: 180L
·Motor Type: OMT1MM
·Power: 22kW
·Number of poles/Speed: 4 poles / 1500rpm
·Voltage: 400/690V
·Mounting configuration: B35
·Brand: OMEC
·Frame type: Cast iron
·IE class: IE3
Trust in the quality and reliability of OMEC for all your electric motor needs.
